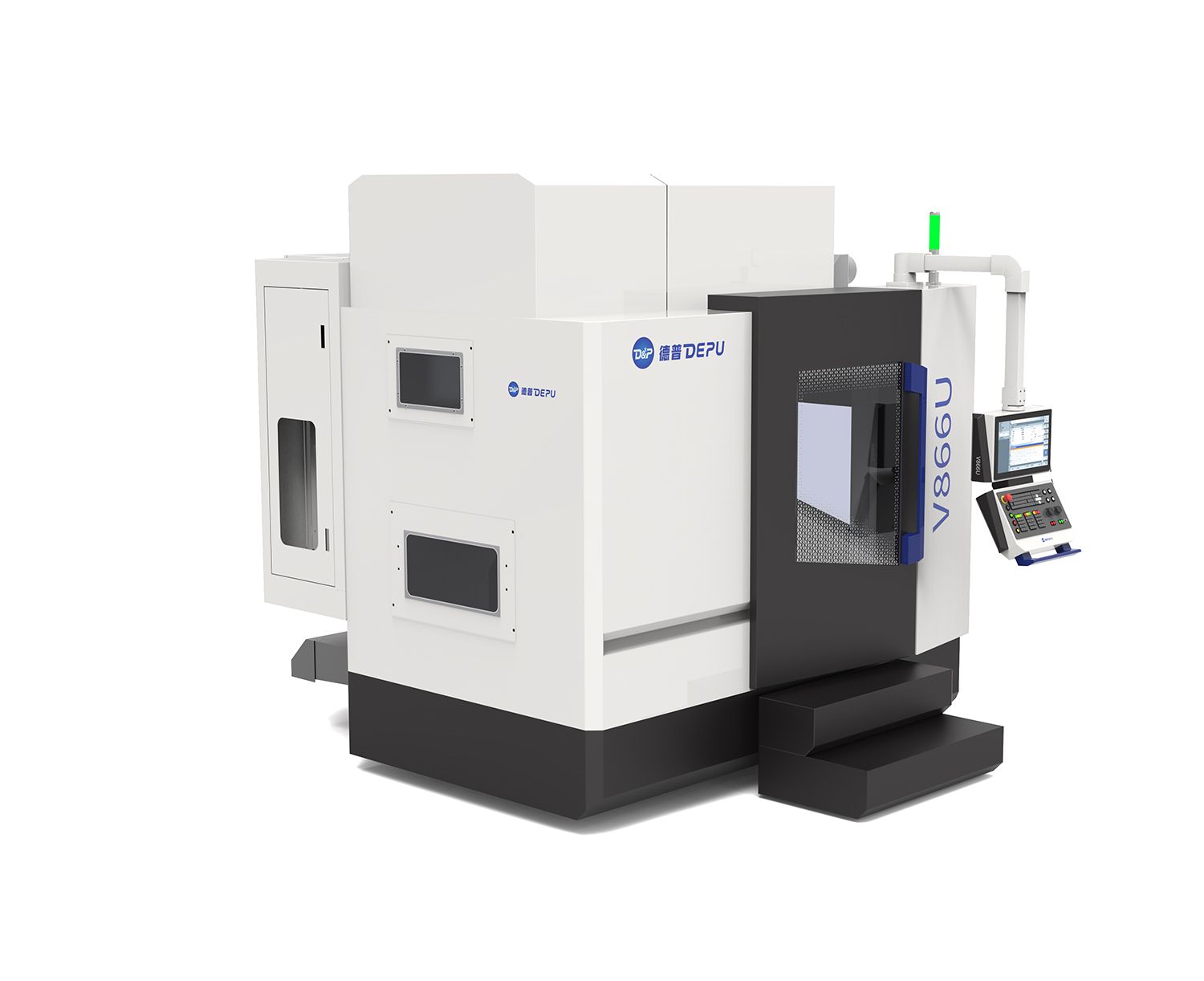

The V866U vertical 5-axis machining center is designed for small to medium-sized precision parts, complex curved surface components, mold inserts, and multi-faceted workpieces. It is suitable for manufacturing companies that need to improve their 5-axis machining capabilities within limited workshop space. This equipment can be used for precision molds, mechanical parts, automotive parts, medical device parts, and small-batch, high-precision machining scenarios.

For B2B customers, the core value of the V866U lies in improving multi-faceted machining efficiency through its vertical five-axis machining center structure, reducing repetitive clamping and manual alignment, and helping companies achieve better dimensional consistency and machining stability in the processing of small and medium-sized complex workpieces.

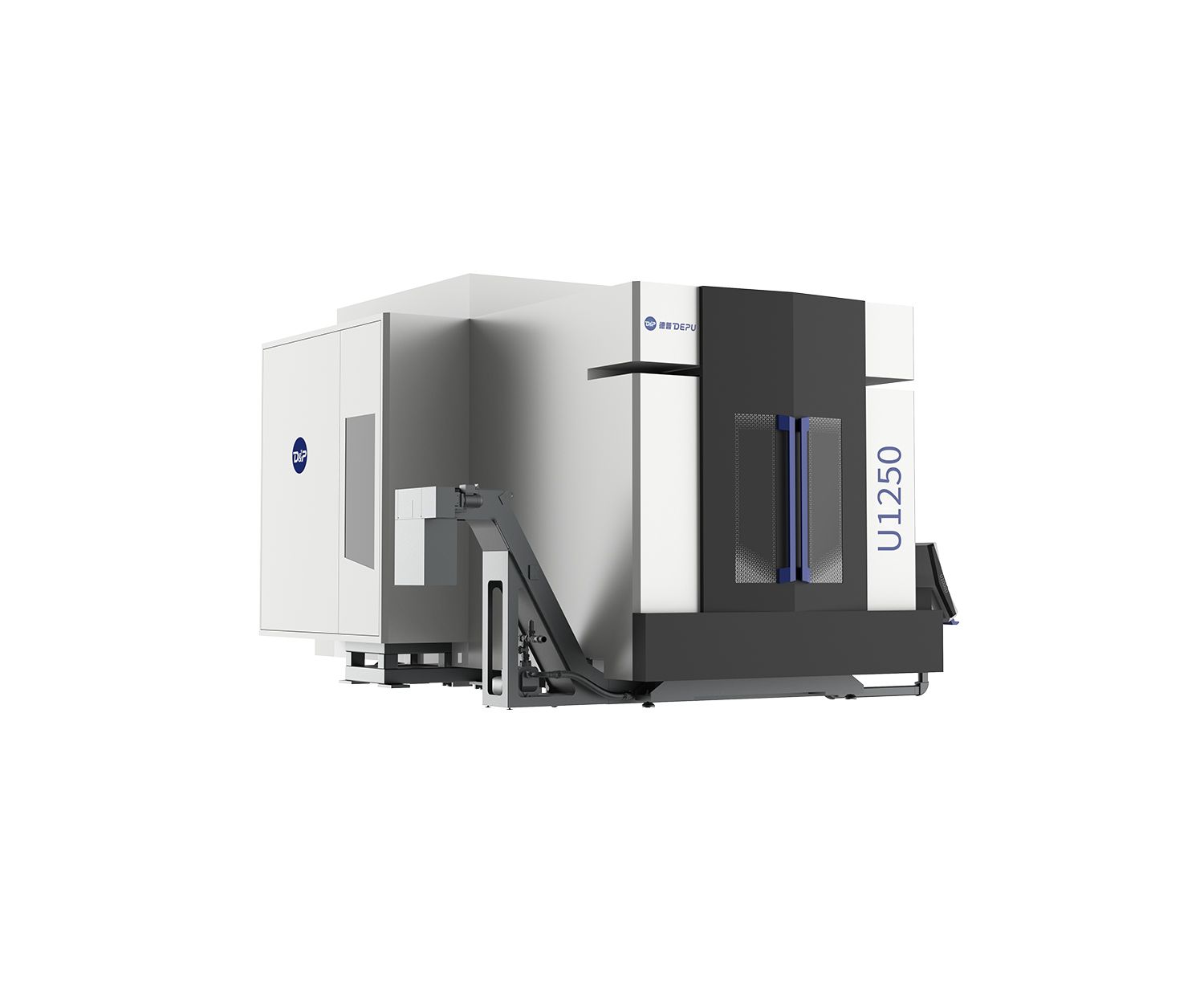

The U1250 five-axis machining center is a high-rigidity machine designed for machining medium to large-sized complex workpieces. It is suitable for machining precision molds, mechanical engineering parts, aerospace components, and heavy-duty industrial parts. The machine features 1200/1000/1200 mm X/Y/Z travel, a maximum workpiece size of Ø1250 × H1000 mm , and a maximum uniform load capacity of 2500 kg on the worktable.

Compared to the U1000D, the U1250 offers further improvements in workpiece size and load-bearing capacity, making it more suitable for machining larger, heavier, and more complex workpieces. Equipped with an HSK-A100 spindle , a 40T tool magazine, and a SIEMENS ONE control system, the equipment is a practical choice for B2B manufacturing companies upgrading their medium-to-large-scale five-axis machining center capabilities.

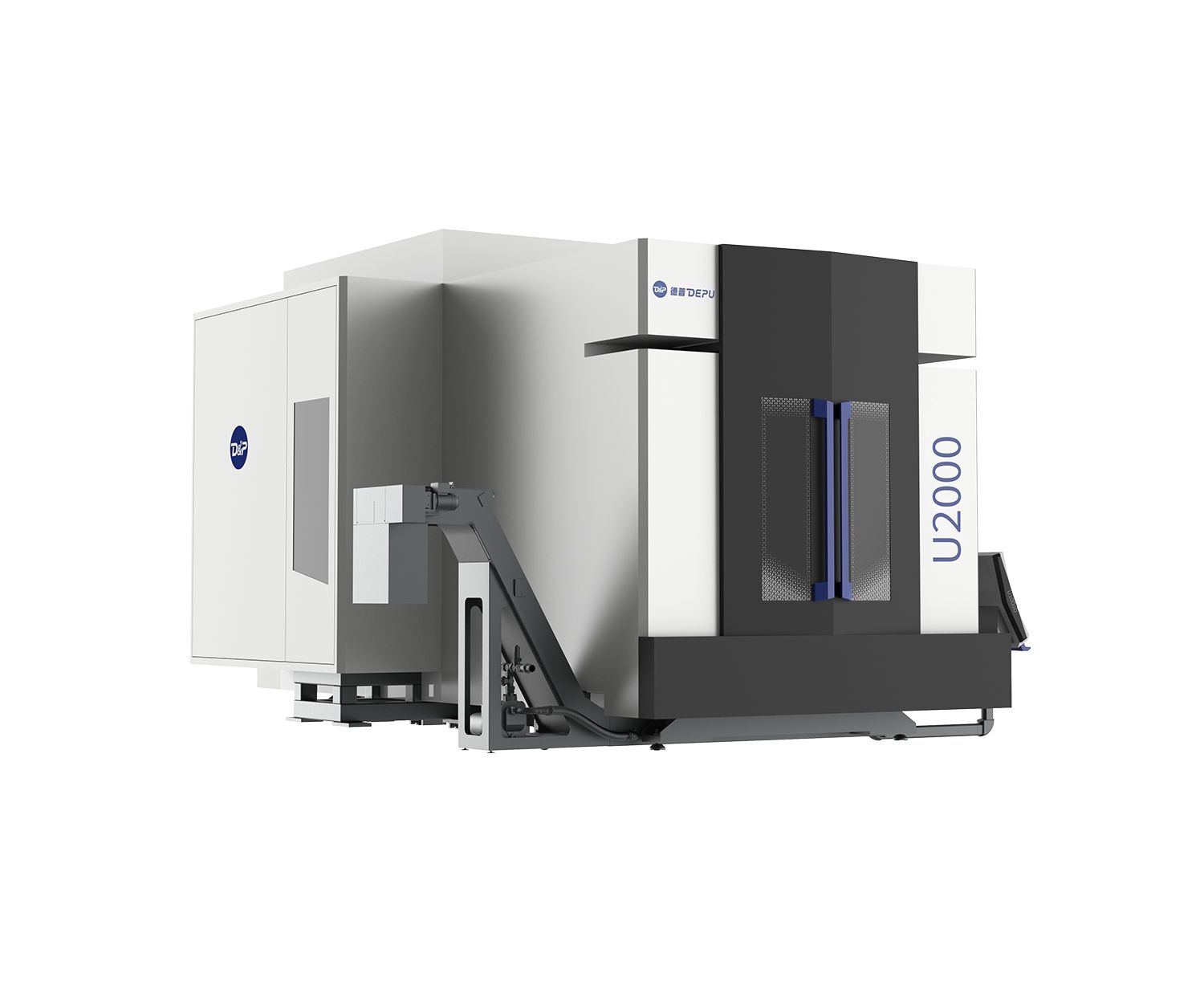

The U2000 heavy-duty five-axis machining center is developed to meet the machining needs of large and complex workpieces, heavy molds, aerospace structural components, energy equipment parts, and large mechanical components. The equipment has an X/Y/Z travel of 2100/2100/1800 mm , a maximum workpiece size of Ø2000 mm , a worktable size of Ø1600 mm , and a maximum uniform load capacity of 4000 kg .

The U2000 is equipped with an HSK-T100 spindle , with a maximum speed of 12,000 rpm , power of 48/71 kW , and maximum torque of 300/650 N·m . For manufacturing companies that need to process large, high-value, complex curved surfaces, or heavy-duty parts, the U2000 is a large CNC machining center designed for high-intensity machining scenarios.

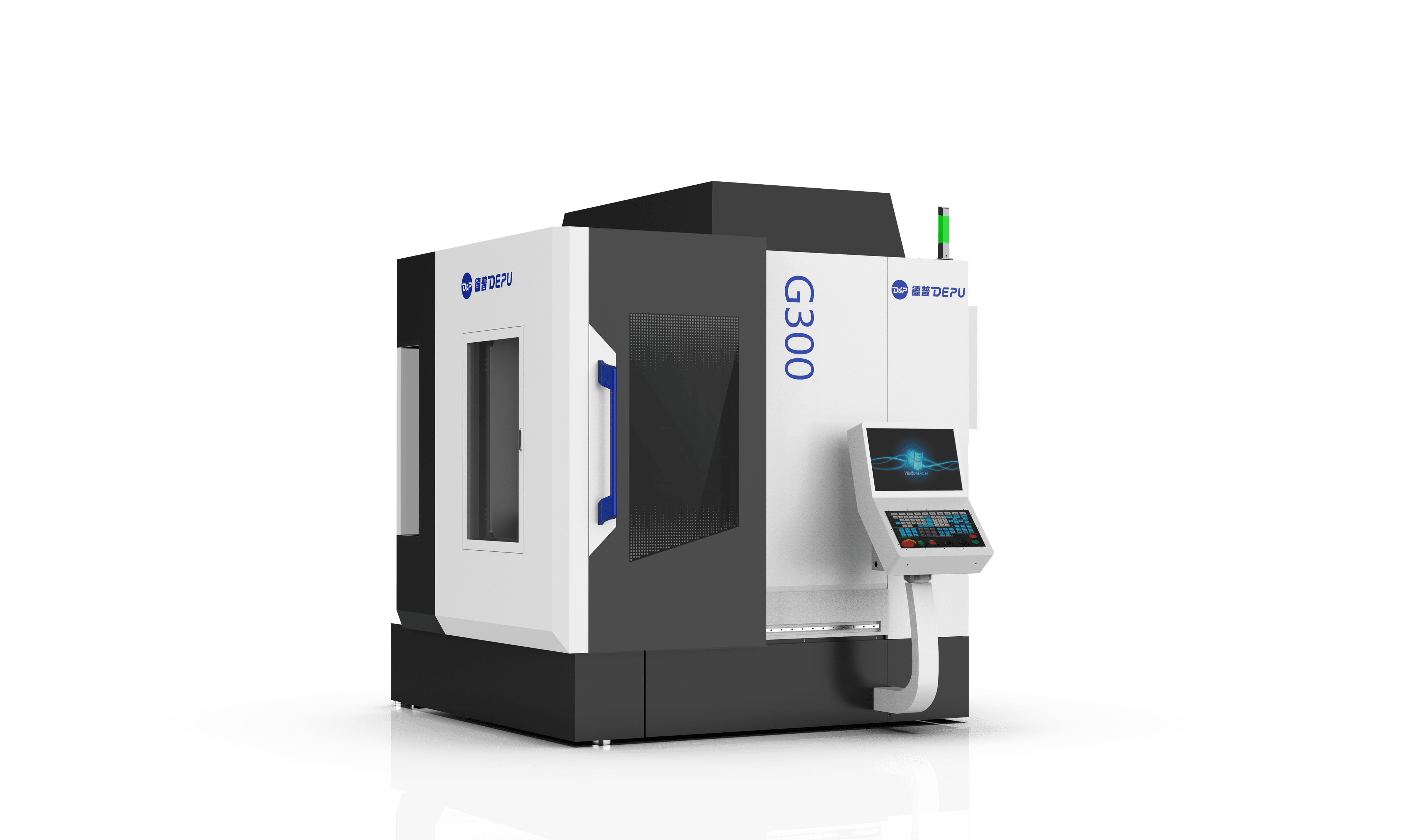

G300 Compact 5-Axis Machining Center

The G300 compact five-axis machining center is designed for high-precision machining of small, complex parts, precision molds, aerospace components, and demanding industrial workpieces. This machine features a compact chassis, a high-speed HSK-E50 spindle , a dual-support cradle rotary table, and a fully closed-loop control system, making it suitable for applications requiring high machining accuracy, surface quality, and production efficiency.

The G300 employs a mechanically optimized gantry structure, integrating high-rigidity feed axes, precision drive components, and a high-performance spindle system. For manufacturing companies that need to machine complex multifaceted structures, precision mold details, and small to medium-sized high-precision parts, the G300 is a stable and reliable high-precision CNC machining center .

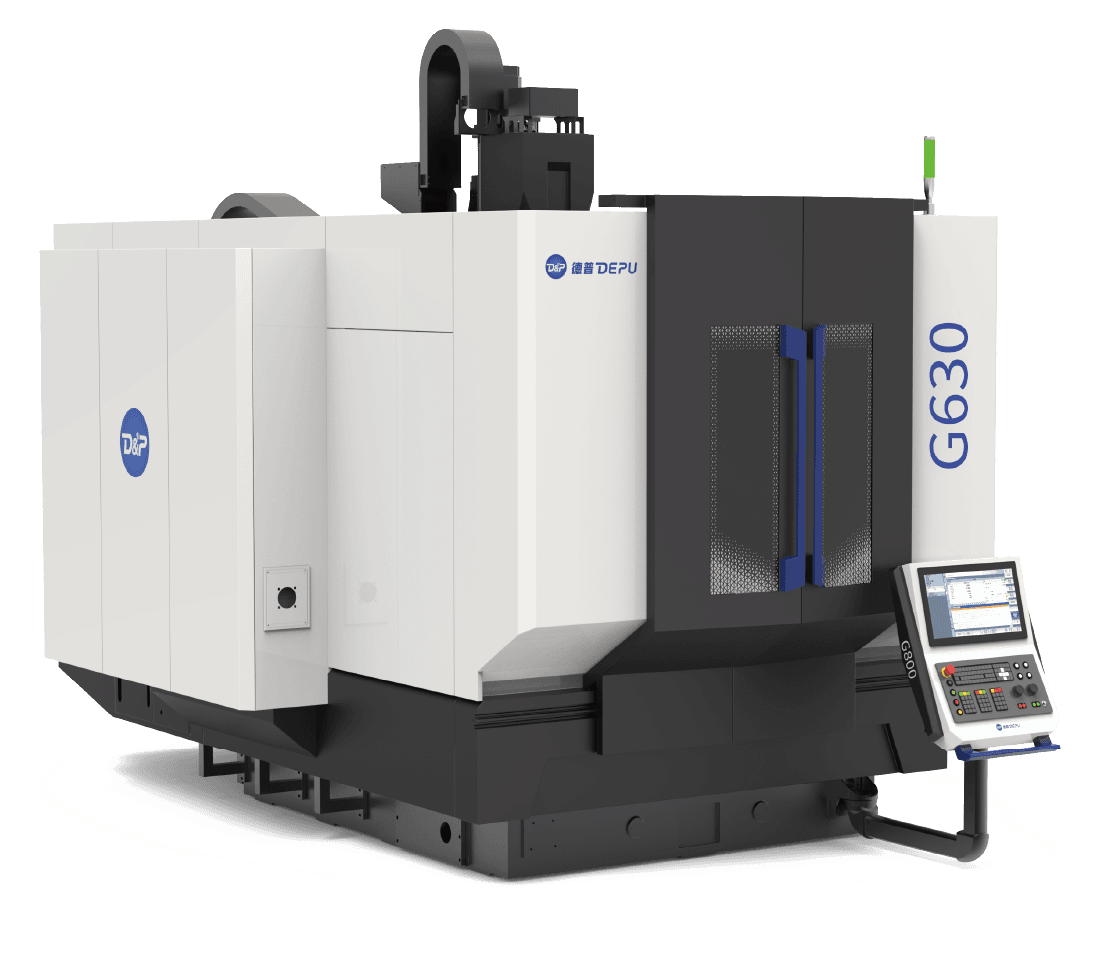

G630 5-axis machining center

The G630 five-axis machining center is a high-performance machine designed for machining precision molds, automotive parts, mechanical engineering components, and high-precision aerospace parts. This model features a high-rigidity gantry structure, a double-support cradle rotary table, a high-performance HSK-A63 spindle , and a SIEMENS ONE control system, enabling it to meet the needs of complex surface machining, multi-angle machining, and multi-process machining.

The G630 features 650/650/500 mm X/Y/Z travel, a maximum workpiece size of Φ700 × 400 mm , and a table load capacity of 500 kg . For manufacturing companies requiring stable accuracy, high production efficiency, and the ability to perform five-axis machining of medium-sized workpieces, the G630 is a high-precision CNC machining center that balances machining range, rigid structure, and accuracy performance.

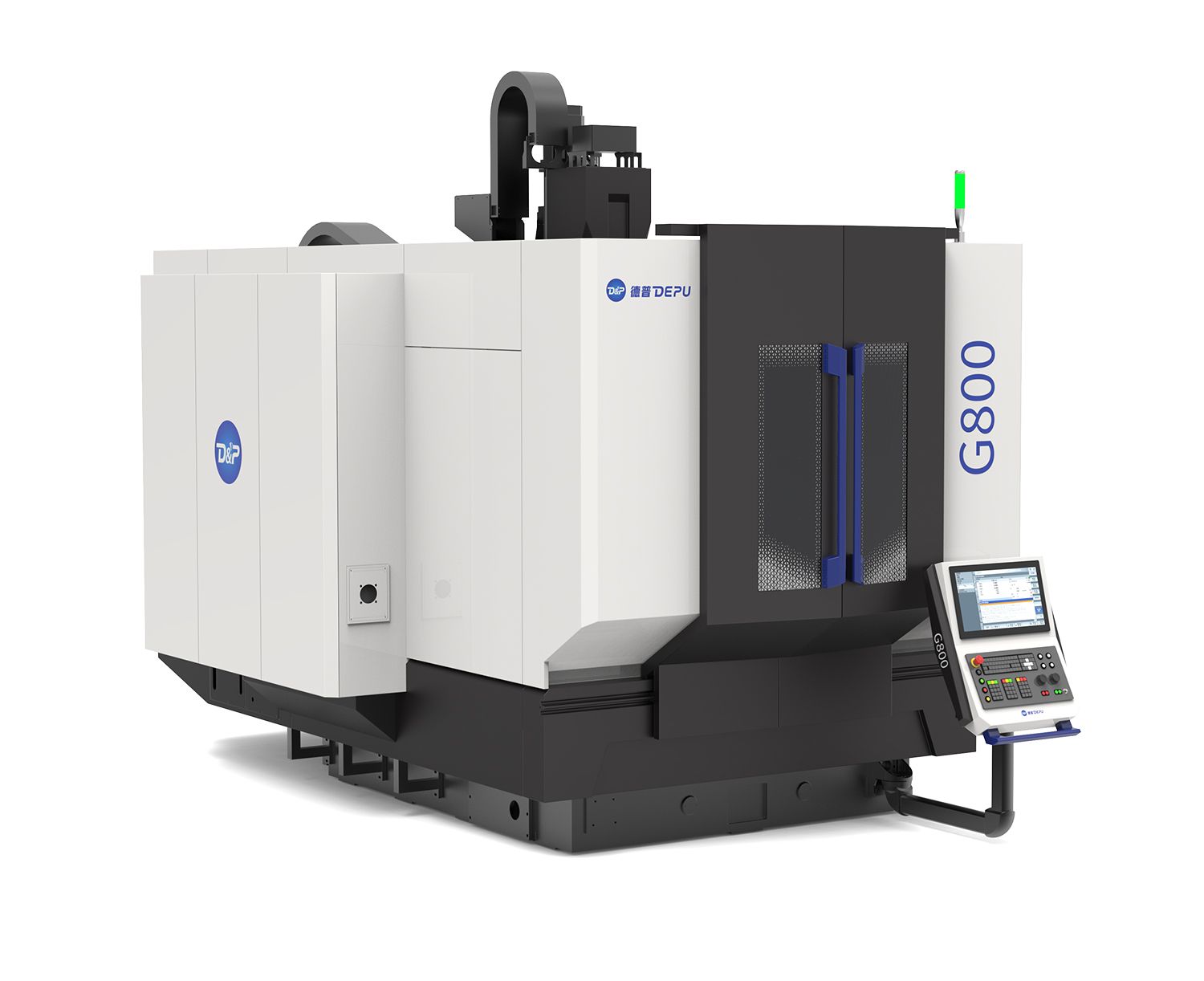

G800 五轴加工中心

G800 五轴加工中心是一款面向中大型精密零件、复杂模具、汽车零部件、机械工程部件及航空航天结构件加工的高性能设备。该机型采用高刚性龙门式结构，配备双支撑摇篮式回转工作台、高性能HSK-A63 主轴和SIEMENS ONE 控制系统，可满足复杂曲面、多角度轮廓、多面加工和高精度连续生产需求。

G800 具备800/900/600 mm的X/Y/Z 行程，最大工件尺寸可达Φ900 × 500 mm ，工作台承重为1200 kg 。相比G630，G800 在加工空间、工作台尺寸和承载能力上进一步提升，更适合对工件尺寸、结构刚性和稳定加工能力要求更高的制造企业。作为一款面向中大型复杂工件的高精度CNC 加工中心，G800 适合用于精密模具、航空航天零部件、汽车工业零件和机械制造领域。

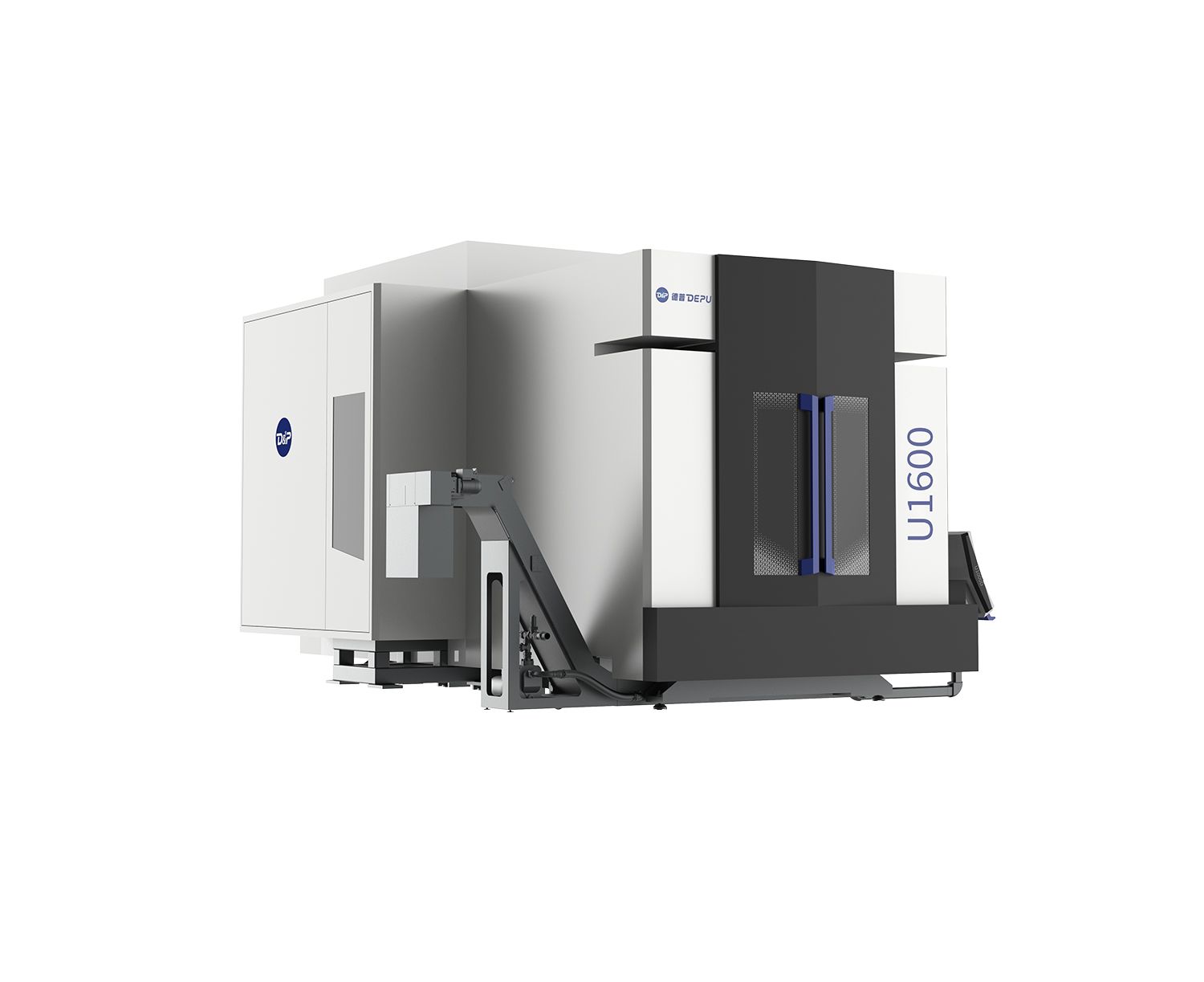

U1600 Large Five-Axis Machining Center

The U1600 large five-axis machining center is a high-rigidity machine designed for machining large and complex workpieces, heavy molds, aerospace structural components, energy equipment parts, and mechanical engineering components. This model features an X/Y/Z travel of 1800/1200/1600 mm , a maximum workpiece size of Ø1800 × H1200 mm , a worktable size of Ø1600 mm , and a maximum uniformly distributed load capacity of 4000 kg . It is suitable for manufacturing enterprises with high requirements for machining space, load-bearing capacity, and five-axis machining stability.

The U1600 is equipped with an HSK-T100 spindle , with a maximum speed of 12,000 rpm , power of 48/71 kW , and torque of 300/452 N·m , meeting the roughing, semi-finishing, and finishing requirements of large parts. Combined with the SIEMENS ONE control system, a 40T tool magazine, and a high-rigidity structural design, the U1600 can serve as a stable, heavy-duty CNC machining center for the production of large and complex parts.

产品概述

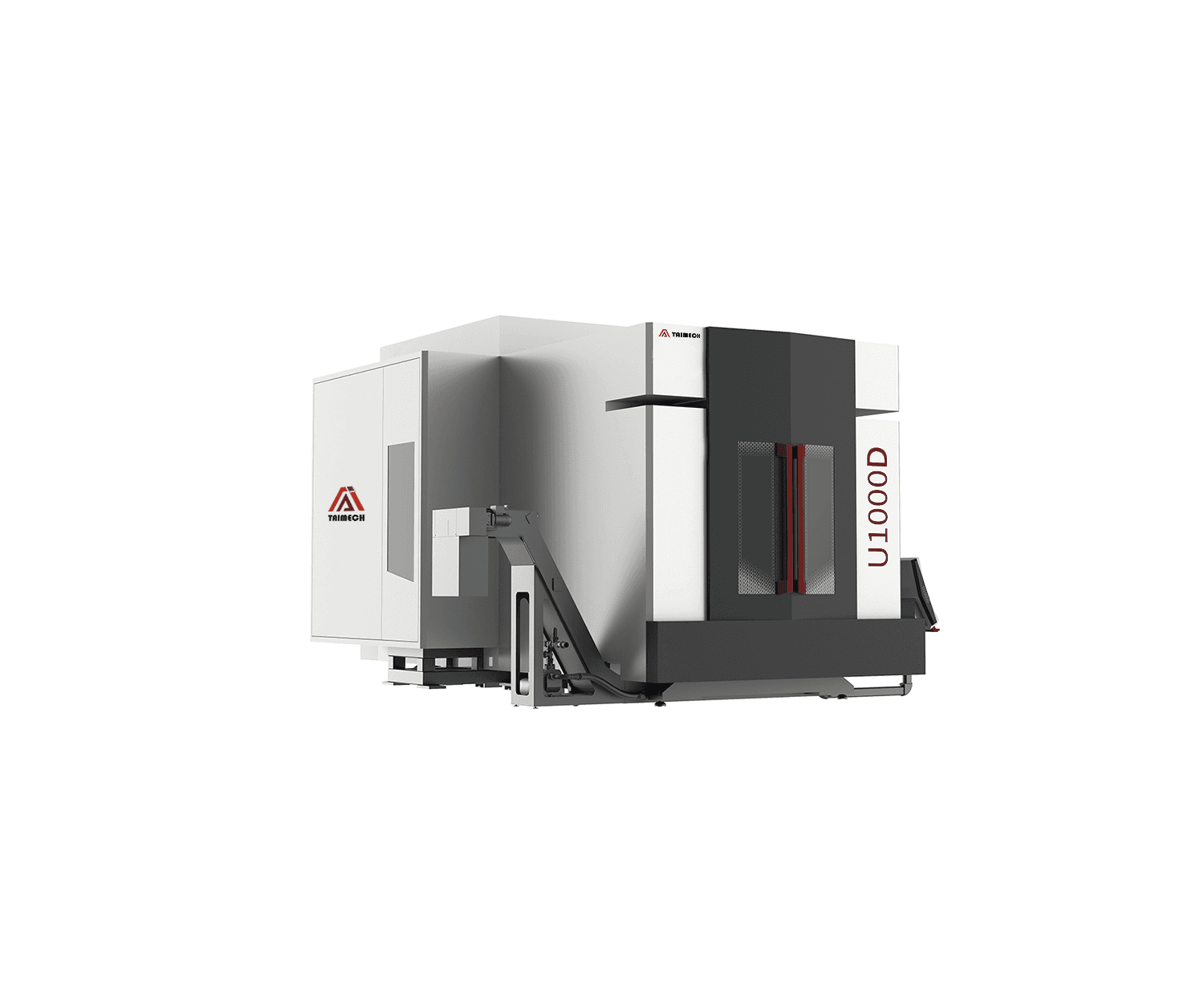

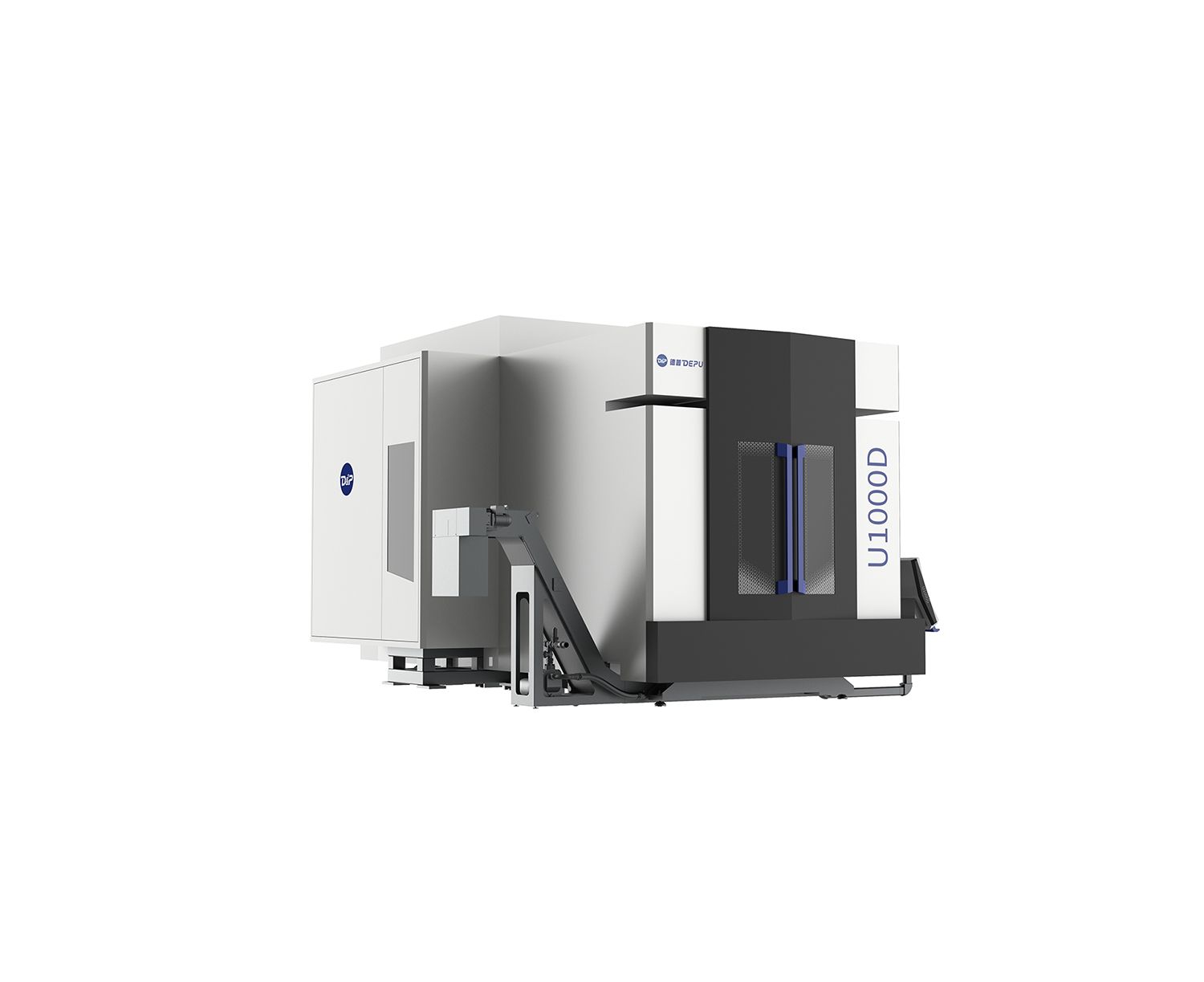

U1000D 五轴加工中心面向中大型复杂工件、精密模具、机械工程零件及高价值工业零部件加工场景开发。设备具备1000/1000/1000 mm的X/Y/Z 行程，最大工件尺寸可达Φ1000 × H1000 mm ，工作台最大均布承重为1800 kg ，适合需要多面加工、重载切削和高精度稳定性的制造企业。

该设备配置HSK-A100 主轴、40T 刀库和SIEMENS ONE 控制系统，兼顾加工刚性、主轴扭矩和长期精度表现。对于正在寻找稳定五轴加工中心或重载CNC 加工中心的ToB 客户来说，U1000D 适合用于模具、航空航天结构件、复杂机械部件及中大型精密零件加工。
